Specifications
|
Model Name |
AMG-10OPTR02T1 |
|
Screen Size |
10.4" |
|
Active Display Area (mm) |
211.2 (H) x 158.4(V) |
|
Pixel Pitch (mm) |
0.264 (H) x 0.264 (V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
800x600 |
|
对比度 Contrast Ratio |
700:1 |
|
颜色像素 Display Color |
16.2M/262k colors |
| Touch Screen(optional） | Capacitive touchscreen |
|
Brightness (CD/㎡) |
400 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
160 (H); 140 (V) |
|
Response Time(Typ.Tr+Tf) |
30ms |
|

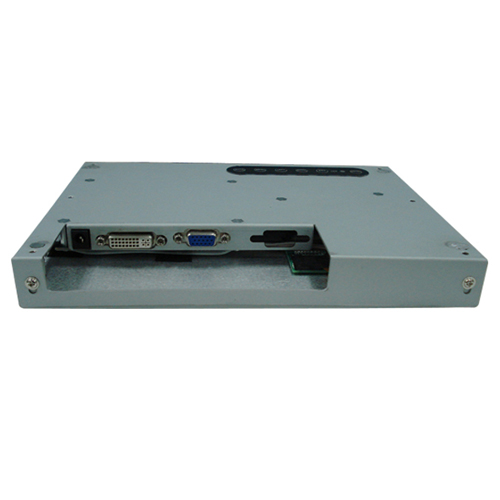

Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
249x192x32.5 |
|
Operating Temperature |
-30~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
