Specifications
|
Model Name |
AMG-15OPAM07T1 |
|
Screen Size |
15" |
|
Active Display Area (mm) |
304.128(H)x228.096(V) |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Display Mode |
Normally White |
|
Display Resolution (pixel) |
1024x768 |
|
Contrast Ratio |
700:1 |
|
Display Color |
16.2M/262K colors |
| Touch Screen(optional) | PCT Touch(10 Points) |
|
Brightness (CD/㎡) |
250 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
160(H); 140 (V) |
|
Response Time(Typ.Tr+Tf) |
8ms |
|

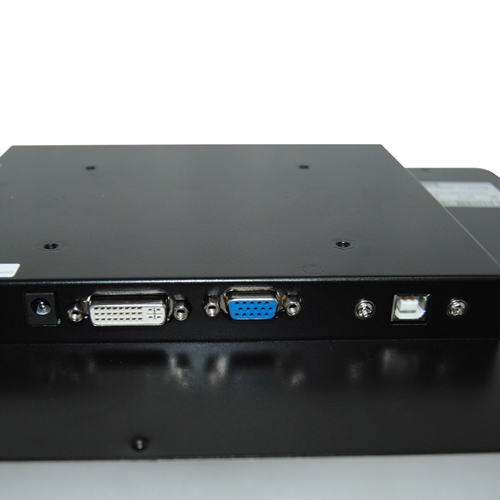

Signal Connector |
VGA/DVI/USB |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
349.8X273.8X41.9 |
|
Operating Temperature |
-30~85℃ |
|
Storage Temperature |
-30~85℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
