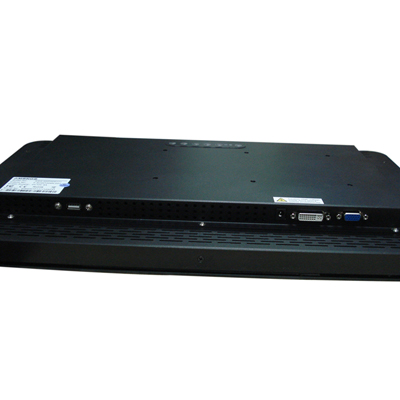

Specifications
|
Model Name |
AMG-22IPGD01T1 |
|
Screen Size |
21.5" |
|
Active Display Area (mm) |
476.64(H)x268.11(V) |
|
Pixel Pitch (mm) |
0.24825x0.24825 |
|
Display Mode |
Normally black |
|
Display Resolution (pixel) |
1920x1080 |
|
Contrast Ratio |
5000:1 |
|
Display Color |
16.7M |
| Touch Screnn(optional) |
PCT Touchscreen |
| Brightness (CD/㎡) | 300 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
178 (H); 178 (V) |
|
Response Time(Typ.Tr+Tf) |
16ms |
|
Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
522x314x47 |
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
