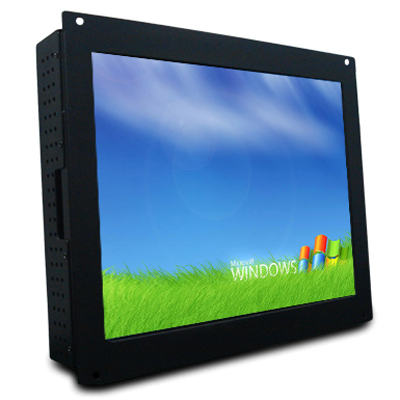

Specifications
|
Model Name |
AMG-12OPUS01T3 |
|
Screen Size |
12.1" |
|
Active Display Area (mm) |
246.0(H)x184.5(V) |
|
Pixel Pitch (mm) |
0.3075(H)x0.3075(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
800x600 |
|
Contrast Ratio |
700:1 |
|
Display Color |
16.2M/262K |
| Touch Screnn(optional) |
Resistive touchscreen |
|
Brightness (CD/㎡) |
450 |
|
Backlight |
LED |
|
Viewing Angles (CR =10) |
160 (H); 140 (V) |
|
Response Time(Typ.Tr+Tf) |
35ms |
|
Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
272X232X38.3 |
|
Operating Temperature |
-30~80℃ |
|
Storage Temperature |
-30~80℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
