Specifications
|

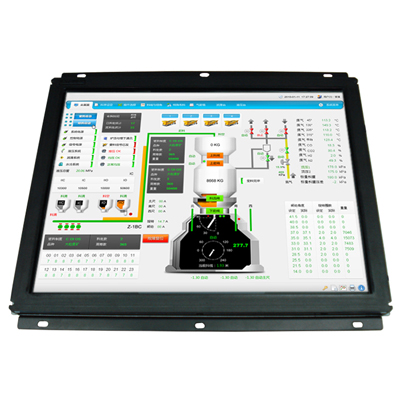

Model Name |
AMG-15OPAC07T1 |
|
Screen Size |
15" |
|
Active Display Area (mm) |
304.128(H)x228.096(V) |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Display Mode |
Normally white |
|
Display Resolution (pixel) |
1024x768 |
|
Contrast Ratio |
500:1 |
|
Display Color |
16.2M Colors |
| Touch Screnn(optional) |
IR Touchscreen |
|
Brightness (CD/㎡) |
250 |
|
Backlight |
CCFL/LED |
|
Viewing Angles (CR =10) |
140 (H); 120 (V) |
|
Response Time(Typ.Tr+Tf) |
35ms |
|
Signal Connector |
VGA/DVI |
|
Power Consumption |
DC 12V |
|
Dimension(VxHxT) |
343X294X42.3 |
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Relative Humidity |
5(%RH)~90(%RH) |
